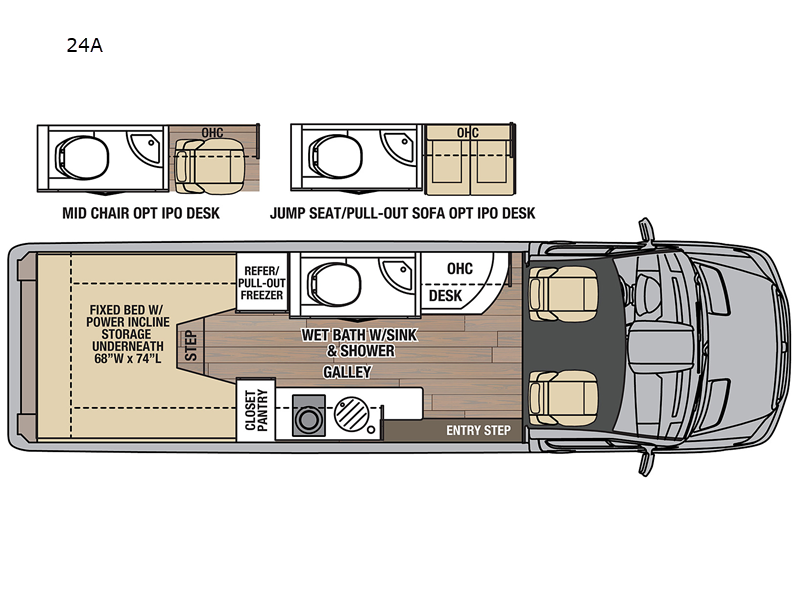

24A Floorplan
Specifications
Sleeps | 2 | Length | 24 ft 3 in |
Ext Width | 6 ft 11 in | Ext Height | 9 ft 6 in |
Int Height | 6 ft 2 in | Hitch Weight | 5000 lbs |
GVWR | 11030 lbs | Fresh Water Capacity | 27 gals |
Grey Water Capacity | 22 gals | Black Water Capacity | 19 gals |
Fuel Type | Diesel | Engine | 3.0L Turbo V6 Diesel |
Chassis | Mercedes 3500 Ext | Horsepower | 188 hp |
Fuel Capacity | 24 gals | Wheelbase | 170 in |
Available Beds | RV Queen | Torque | 325 ft-lb |
Refrigerator Type | Nova Kool 7300 | Cooktop Burners | 1 |
Number of Awnings | 1 | LP Tank Capacity | 41 lbs |
TV Info | Coach 24" LED Smart TV | Awning Info | 13' 1" |
Gross Combined Weight | 15250 lbs | Shower Type | Wet/Bath Shower |
Electrical Service | 30 amp |
Description
Coachmen Galleria Class B diesel motorhome 24A highlights:
- Wet Bath
- Rear Bed
- Desk
- WiFi Ranger SkyPro
Traveling is made easy in this motorhome! If you need to get some work done while you're away then you will appreciate the desk with overhead cabinets but you can switch it out for an optional mid chair or an optional jump seat/pull-out sofa to convert into a junior sleeping area. After a long day of traveling, you can freshen up in the wet bath with a sink and shower that has an Oxygenics Fury handheld shower head with on/off, plus the shower miser water saver prevents unnecessary water waste. The rear fixed bed has power incline and 26 cu. ft. of heated storage underneath it to secure your gear. Keep your bellies full with the single burner cooktop, the Nova Kool 7300 refrigerator with pull-out freezer drawer, and a closet/pantry for snacks. You will also appreciate the reading lights with individual switches and USB ports to charge your electronics as you read at night! Available with an optional 4x4 chassis. See dealer for details.
Get the good times rolling with one of these Coachmen RV Galleria Class B diesel motorhomes! They are built on the award winning 3500 Mercedes Sprinter extended platform and the "Blue TEC" Mercedes 3.0L turbo V6 diesel engine which is one of the cleanest running diesel engines on the market. Each one comes with high end components like a Truma Combi furnace/water heater system, an Onan QG 2500 LP quiet generator or optional Li3 lithium battery system, and handcrafted maple cabinetry by the local Amish. The back-up camera, blind spot monitoring, and lane assist sensor all help to ensure you safely arrive to each destination. The new 30 amp smart plug is weatherproof so you don't have to worry about it getting wet, plus it has 20x the contact area and has a LED light power indicator. Get on the road in your favorite model today!
Features
Standard Features (2025)
Top Chassis Features
- Mercedes 2.0L Turbo I4 Diesel
- 9-Speed Automatic Transmission
- Blind Spot Monitoring/Lane Assist Sensor
- ESP – Electronic Stability Program
- Collision Avoidance Indicator
- Front Window and Side Airbags
- High Beam Assist
- Back-up Camera
- Heated Side View Mirrors
- Heated Front Swivel Seats
- Multi-function Steering Wheel
- Xenon Head Lamps and Fog Lamps
- Head Lamp Washer
- 5,000 Lb. Tow Hitch with 7-Pin Wiring Connector
Standard Features
- New King Olympus Digital Antenna, WiFi Booster, and cell booster prep
- NEW 30 AMP Smart Plug (LED light power indicator, 20X contact area, weatherproof)
- High gloss black painted Mercedes steel OEM rims. No paint on front bumper, rear bumper, and side cladding
- Remote Access Eclipse App – Controls Firefly system while away (Coach must have internet)
- 24” LED Smart TV
- Oxygenics Fury handheld shower head with On/Off
- Truma Combi Eco Plus Furnace/Water Heater
- Nova Kool 7300 Refrigerator with pull-out freezer drawer (24A, 24FL)
- Onan QG 2500 LP quiet generator
- Q-Foam in sofas and jump seats
- 330W Solar (3-110W panels)
- Sumo Spring suspension (2x4)
- Standard Upgraded Insulation R-15
- Sure Level Tank Sensors read tank levels at 10% increments
- Black Tank Flush
- MaxxAir Fan with rain sensor and remote
- Horizon Solid Surface Countertop with Plate Drying Rack and Sink Cover
- High Rise Kitchen Faucet
- New Larger Square Sink w/ Pull out Sprayer Faucet (N/A 24A, 24FL)
- Custom high gloss hardwood cabinetry with radius doors and soft close hinges
- Motion sensor lighting and composite cabinet backing in overhead cabinets
- Positive catches and soft close drawer guides kitchen base cabinets
- Reading lights with individual switches and USB ports
- Cup holders by rear sofa
- Undercarriage Lighting
- Gen Start and Auto Start features
- Interior PVC vinyl wall color and texture
- Standard 330 AMP Hour AGM Battery with 2,000 W Pure Sine Wave Inverter – 2,000 W Pure Sine Wave Inverter powers microwave and all outlets (not A/C)
- Truma Aventa 13.5k 110V A/C (night mode + built in dehumidifier)
- Multiple USB ports in living area
- True lay flat memory foam power sofa (Industry first)
- Dedicated C-PAP machine outlet and location
- R-38 Reflective insulation in floor
- Shower miser water saver
- 360 Siphon black tank vent
- Rear Swivel Table (N/A 24A)
- Hardwood expanding table with cup holders (24T, 24Q)
- One-piece carpet mat
Options
- Painted Front Bumper, Rear Bumper, and Side Claddings
- Upgraded Alcoa Aluminum Rims with Inner Alcoa Dually Rim (Replaces 4 standard aluminum rims)
- Cozy Wrap Upgraded Insulation
- Front Swivel Table Behind Driver and Passenger Seats with Floor Mounted Post (24A/24FL)
- Side entry screen door
- LP Cooktop (IPO induction)
- Upgraded front window covers
- AWD Chassis (All Floorplans)
- Sumo Springs for AWD chassis
- VB Air suspension
- Second row seat delete (N/A 24FL, 24A)
- Polar Package Plus Heating Pads
- Li3 Lithium Battery – 630 amp-hour lithium battery with internal heater, Bluetooth battery management system and remote LCD display, second under hood alternator with multi-stage voltage regulator, Xantrex XC Pro 3,000W inverter/ charger with Bluetooth XC Remote, Xantrex Echo-charge (charges chassis battery while plugged into shore power). Onan Generator not included with Li3 Lithium Battery option.
- Extra 630AH Lithionics Lithium Battery /w Internal Heater (1260AH Total w/ Li3 Lithium Option) (Must Have Optional Li3 Lithium Battery System)
- Lithionics GTX 310AH “Drop In” Lithium Battery (Replaces Standard AGM Battery)
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
